T1 vs. T2 Battery Terminals: A Critical Guide for Marine Applications

In the world of marine electrical systems, reliability is paramount. While we often focus on the capacity and chemistry of a marine battery, an equally critical component is often overlooked: the battery terminal. For many sealed lead-acid (SLA) and VRLA batteries used in critical shipboard systems, the connection point comes in one of two common formats: the T1 terminal and the T2 terminal.

Though they may look similar at a glance, these terminals are not interchangeable. Choosing the wrong one or making an improper connection can lead to equipment failure, overheating, or even a fire risk. This article will provide a detailed comparison of T1 and T2 terminals, explain how to connect them correctly, and explore their specific, vital applications in the maritime sector.

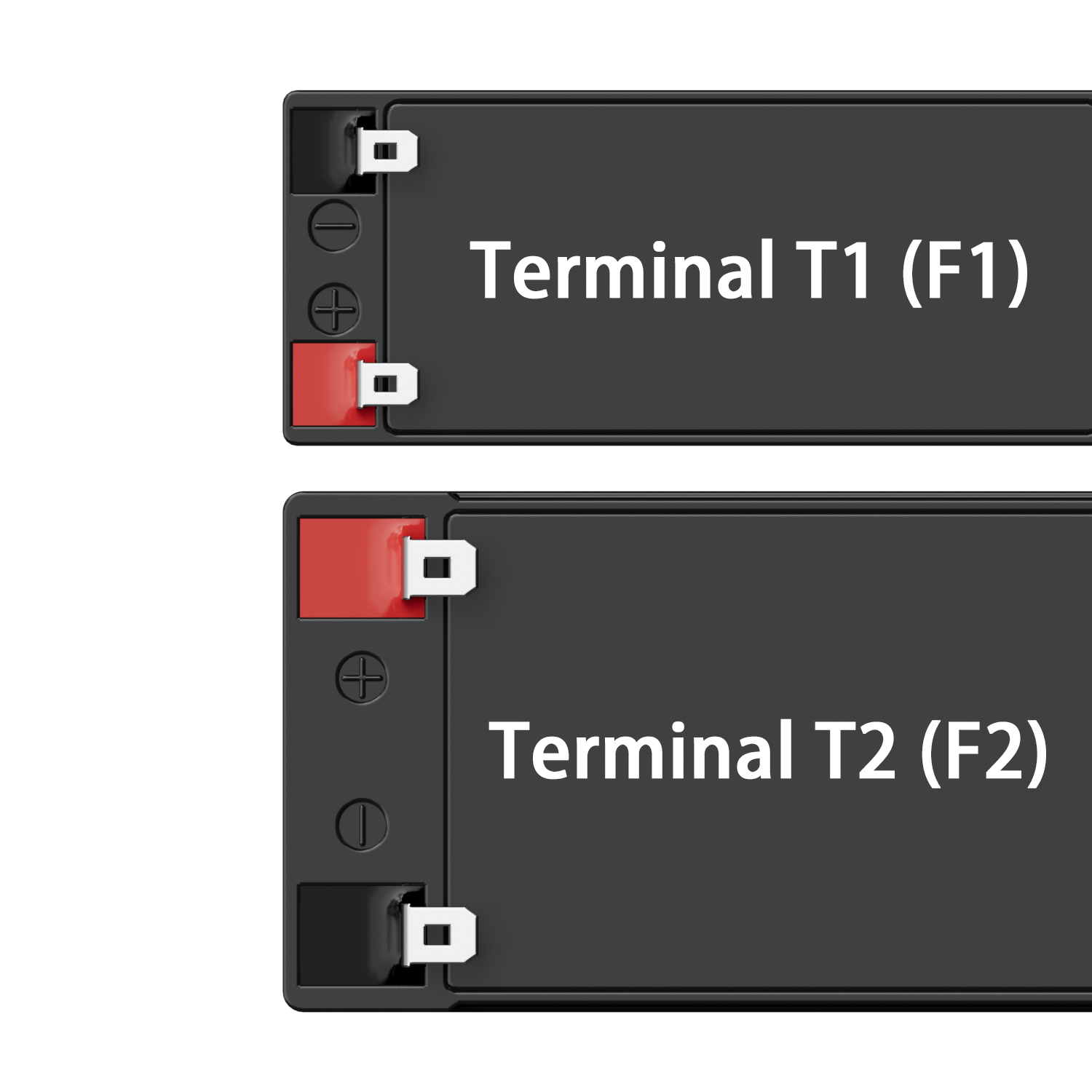

Technical Specifications: T1 (F1) vs. T2 (F2) Terminals

The fundamental difference between T1 and T2 terminals is their physical size, which directly dictates their current-carrying capacity. These flat blade-style connectors are also known as Faston or spade terminals, with "F1" and "F2" being alternative names for T1 and T2, respectively.

Feature	T1 / F1 Terminal	T2 / F2 Terminal
Common Name	T1, F1, Faston 187	T2, F2, Faston 250
Width (Imperial)	3/16 inch	1/4 inch
Width (Metric)	4.8 mm	6.35 mm
Current Capacity	Lower	Higher
Key Characteristic	Narrower blade for lower-power devices	Wider blade for higher-power devices

As the chart clearly shows, the T2 terminal is wider than the T1 terminal. This larger surface area allows for a more robust connection and the ability to safely handle higher electrical currents without overheating.

Correct Connection and Installation

A reliable battery connection system is crucial for safety. Connecting these spade-style terminals correctly is straightforward but requires attention to detail.

1. Identify the Terminal: Before connecting, correctly identify the terminal on your battery as either T1 or T2.


2. Use the Correct Mating Connector: Ensure the female spade connector on your equipment's wiring is the correct size for the battery's male terminal. A T2 female connector will be loose on a T1 male terminal, creating a poor, high-resistance connection.


3. Ensure a Snug Fit: The connection should be firm and snug. A loose connection can cause electrical arcing, which generates intense heat, melts the terminal, and poses a significant fire hazard.


4. Check for Corrosion: In the marine environment, corrosion is a constant enemy. Always inspect both the battery terminal and the wire connector for any signs of oxidation or corrosion. Clean them with a wire brush or dedicated terminal cleaner before making the connection.


5. Avoid Stress on the Terminal: Ensure the wiring is not pulling on the terminal at an angle. This can weaken the connection over time.

Critical Warning: Never attempt to force a larger female connector onto a smaller male terminal or vice-versa. Mismatched terminals are a primary cause of connection failure.

Typical Applications in the Marine Sector

The different current capacities of T1 and T2 terminals lead to their use in very different types of shipboard equipment.

T1 (F1) Terminal Applications (Low-Current Systems)

The narrower T1 terminal is perfectly suited for low-power devices that require a stable, reliable standby or control power source but do not draw a significant amount of current.

• Fire Detection & Alarm Systems: The backup battery for the main fire alarm control panel. These systems have a very low standby current draw and only require a small current to trigger alarms.


• General Alarm Systems: Similar to fire alarms, the control units for general and emergency alarms use batteries with T1 terminals for their backup power.


• Emergency Lighting Control Units: The batteries that power the logic circuits for controlling emergency lights are a typical application.


• Small Internal Backups: Some standalone electronic instruments may use small internal SLA batteries with T1 terminals.

The Logic: T1 terminals are used for systems that need to be "kept alive" and "think," rather than for systems that need to "do heavy work."

T2 (F2) Terminal Applications (Higher-Current Systems)

The wider, more robust T2 terminal is used where a higher current draw is expected, either for a short burst or for sustained operation.

• Marine UPS Systems: Protects critical bridge gear like ECDIS, radar, and GMDSS during power transitions or outages. T2 terminals ensure swift, reliable current flow without overheating.


• GMDSS Radio Backup Power: Dedicated battery banks for MF/HF and VHF radios require a solid connection to handle the higher current draw during transmission.


• Small Starting  Batteries: Emergency generators and lifeboat engines require a powerful, short-lived current for cranking. T2 terminals are ideal for delivering this high-amperage reliably.


• Deep-Cycle Auxiliary Batteries: Used for backup lighting or powering small inverters, these batteries can draw substantial current. T2 terminals provide the necessary stability and capacity.

The Logic: T2 terminals are used for systems that need to "power" equipment and "perform work," where the electrical load is significantly higher.

Conclusion

While the difference between a T1 terminal and a T2 terminal may seem minor—less than 2 millimeters in width—the functional implications for a vessel's safety and reliability are enormous. The T1 is the specialist for low-power control and alarm systems, while the T2 is the workhorse for higher-draw applications like a Marine UPS.

Understanding this distinction and ensuring the correct marine battery with the appropriate terminal is used for every application is a fundamental aspect of professional marine electrical practice. It is a small detail that guarantees the integrity of a ship's most critical battery connection system.
